Tie-Wire Wedge Anchor

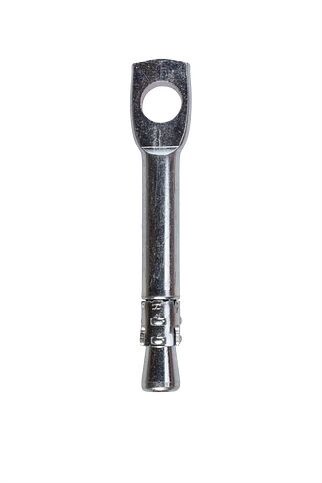

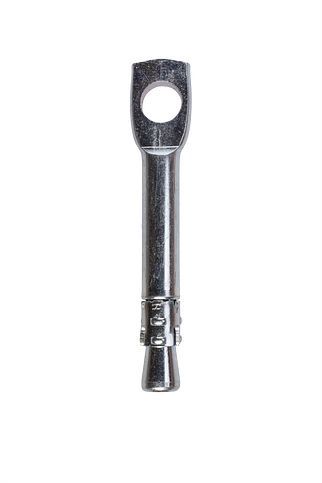

The Simpson Strong-Tie tie-wire anchor is a wedge-style expansion anchor for use in normal-weight concrete or in concrete over steel deck. With a tri-segmented, dual-embossed clip, the tie-wire anchor is ideal for the installation of acoustic ceiling grid and is easily set with the claw of a hammer.
Key Features
- 1/4" eyelet for easy threading of wire
- Sets with claw of hammer
- Tri-segmented clip — each segment adjusts independently to hole irregularities
- Dual embossments on each clip segment enable the clip to undercut into the concrete, increasing follow-up expansion
- Wedge-style expansion anchor for use in normal weight concrete or concrete over metal deck
Material
- Carbon steel
Finish
- Zinc plated
Installation
- Drill a hole at least 1 1/2" deep using a 1/4"-diameter carbide tipped bit.
- Drive the anchor into the hole until the bottom of the head is flush with the base material.
- Set the anchor by prying/pulling the head with the claw end of the hammer.
- Attach wire.
