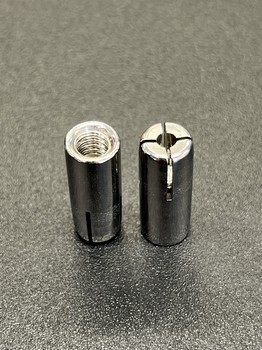

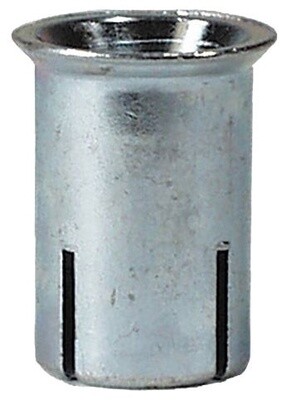

Drop-In (DIASS) Stainless-Steel Internally Threaded Anchor
$2.05
Bulk pricing available for quantities of 10 units or more
Size
Please choose
In stock: 88 available
1
Buy more, save more
| Quantity | Price per item | Discount |
| 10 items | $1.63 | 20% off |
| 25 items | $1.51 | 26% off |
Product Details
Drop-In (DIASS) Stainless-Steel Internally Threaded Anchor
Drop-in anchors are internally threaded drop-in expansion anchors for use in flush-mount applications in solid base materials. Minimum thread engagement should be equal to the nominal diameter of the threaded insert.
Key Features
- Hand- and power-setting tools available for fast, easy and economical installation
- Fixed-depth stop bit helps you drill to the correct depth every time
Material
- Stainless steel
Installation
- Drill a hole in the base material using the appropriate diameter carbide drill bit as specified in the table. Drill the hole to the specified embedment depth plus 1/8" for flush mounting. Blow the hole clean using compressed air. Overhead installations need not be blown clean.
- Insert designated anchor into hole. Tap with hammer until flush against surface.
- Using the designated drop-in setting tool, drive expander plug toward the bottom of the anchor until shoulder of setting tool makes contact with the top of the anchor.
- Minimum thread engagement should be equal to the nominal diameter of the threaded insert.
Caution
- Oversized holes will make it difficult to set the anchor and will reduce the anchor's load capacity.
More Info
Drop-In (DIASS) Stainless-Steel Internally Threaded Anchor | Simpson Strong-Tie (strongtie.com)
