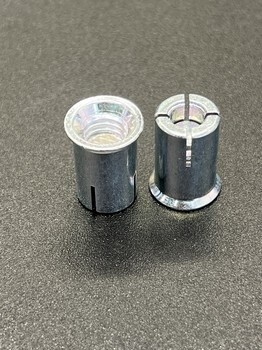

Drop-In (DIAS) Short Internally Threaded Anchor
$0.71
Size
Please choose
In stock: 100 available
1
Product Details
Drop-In (DIAS) Short Internally Threaded Anchor
Drop-in anchors are internally threaded drop-in expansion anchors for use in flush-mount applications in solid base materials. Minimum thread engagement should be equal to the nominal diameter of the threaded insert.
Key Features
- Lipped edge eliminates need for precisely drilled hole depth
- Hand- and power-setting tools available for fast, easy and economical installation
- Fixed-depth stop bit helps you drill to the correct depth every time
- Short length enables shallow embedment to help avoid drilling into rebar or pre-stressed/post-tensioned cables
- Short drop-in anchors include a setting tool compatible with the anchor to ensure consistent installation
Material
- Carbon steel
Finish
- Zinc plated
Installation
-
Drill a hole in the base material using the appropriate diameter carbide drill bit as specified in the table. Drill the hole to the specified embedment depth plus 1/8" for flush mounting. Blow the hole clean using compressed air. Overhead installations need not be blown clean.
-
Insert designated anchor into hole. Tap with hammer until flush against surface.
- Using the designated drop-in setting tool, drive expander plug toward the bottom of the anchor until shoulder of setting tool makes contact with the top of the anchor.
- Minimum thread engagement should be equal to the nominal diameter of the threaded insert.
Caution
- Oversized holes will make it difficult to set the anchor and will reduce the anchor’s load capacity
More Info
Drop-In (DIAS) Short Internally Threaded Anchor | Simpson Strong-Tie (strongtie.com)
