Strong-Bolt® 2 Wedge Anchor Galvanized
$1.60
Bulk pricing available for quantities of 50 units or more
Diameter X Length
Please choose
In stock: 344 available
1
Buy more, save more
| Quantity | Price per item | Discount |
| 50 items | $1.02 | 36% off |
| 100 items | $0.85 | 47% off |
Product Details

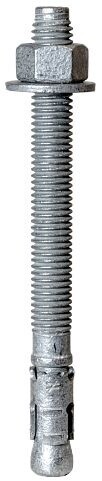

Strong-Bolt® 2 Wedge Anchor Galvanized
The Strong-Bolt 2 wedge-type expansion anchor in a mechanically galvanized finish can be used where a high-load-resisting anchor is needed for exterior applications. It has the same dual undercutting embossments on each clip segment as the zinc-electroplated version. Suitable for horizontal, vertical and overhead applications, the STB2-MG anchor is tested in uncracked concrete in accordance with AC193 and also in uncracked masonry in accordance with AC01.
Key Features
- Chamfered top designed to prevent mushrooming during installation
- Suitable for horizontal, vertical and overhead applications
- Tested for minimum concrete thickness of 3 1/4"
- Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
- Tested per ACI355.2 and AC193
Material
- Carbon steel
Finish
- Mechanically galvanized
Installation
- Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed. Drill the hole to the specified minimum hole depth, and blow it clean using compressed air. (Overhead installations need not be blown clean.) Alternatively, drill the hole deep enough to accommodate embedment depth and dust from drilling.
- Assemble the anchor with nut and washer so the top of the nut is flush with the top of the anchor. Place the anchor in the fixture, and drive it into the hole until the washer and nut are tight against the fixture.
- Tighten to the required installation torque.
| Strong-Bolt 2 Diameter (in.) | Drill Bit Size (in.) | Min. Fixture Hole (in.) | Wrench Size (in.) | Concrete Installation Torque (ft.-lbf.) |
|---|---|---|---|---|
| 1/4 | 1/4 | 5/16 | 7/16 | 4 |
| 3/8 | 3/8 | 7/16 | 9/16 | 20 |
| 1/2 | 1/2 | 9/16 | 3/4 | 45 |
| 5/8 | 5/8 | 11/16 | 15/16 | 60 |
| 3/4 | 3/4 | 7/8 | 1 1/8 | 90 |
Caution
- Do not use an impact wrench to set or tighten the Strong-Bolt 2 anchor
- Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor's load capacity
More Info
Strong-Bolt® 2 Wedge Anchor — Mechanically Galvanized | Simpson Strong-Tie (strongtie.com)
