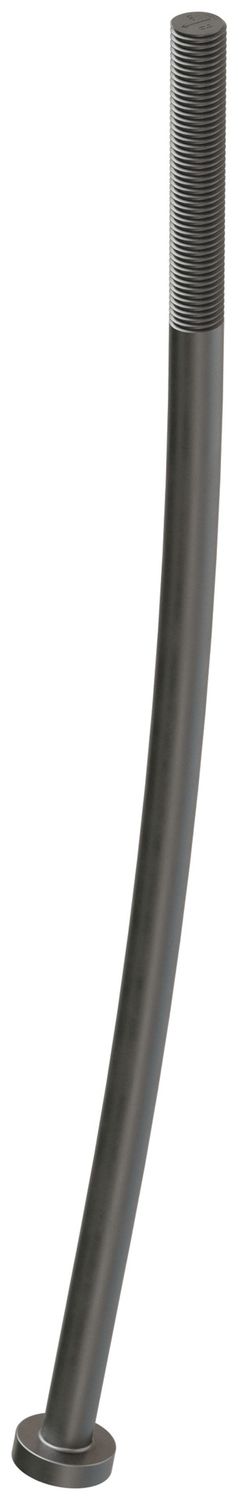

SABR™Anchor Bolt

The new SABR™ anchor bolt is a cast-in-place anchor providing five diameters for all Simpson Strong-Tie holdowns: 5/8", 3/4", 7/8", 1" and 1 1/4". All SABR anchor diameters are designed with a 6" threaded section that accommodates all seat heights of Simpson Strong-Tie holdowns when installed on a 2x or 3x sill plate. Extensive testing has been done to determine the designed load capacity of the SABR when installed in many common applications.

The Simpson Strong-Tie SABR anchor bolts are code listed by ICC-ES under the 2012, 2015, 2018, 2021 and 2024 IBC® and IRC®.

• Single anchor solution for many foundation types
• Stamped model and alignment information on the head makes it easy to identify and align for installation
• Sweep design allows placement near the edge of concrete while increasing tension capacity
• One-piece design eliminates potential loss of components
• Single length for each diameter simplifies specification and makes it easier for dealers to order and inventory

• ASTM F1554 Grade 55

• None. May be ordered HDG.
