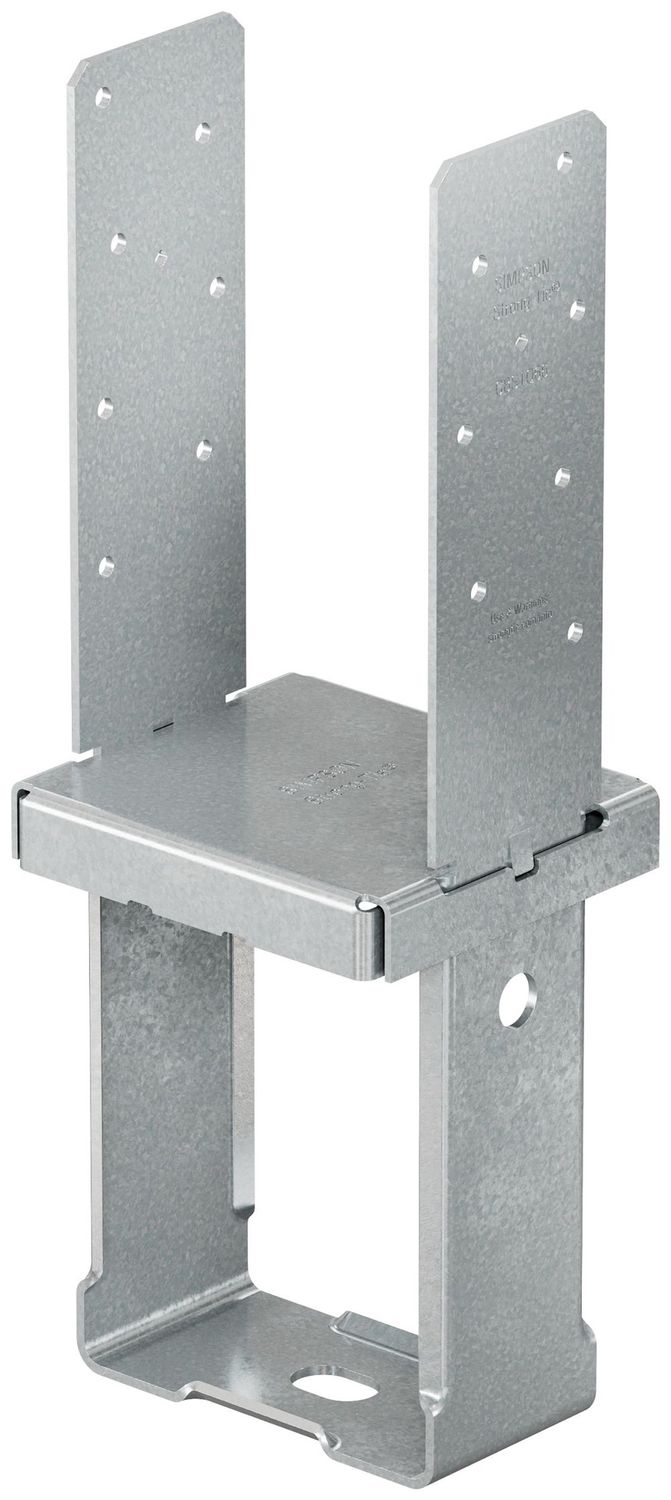

CBSTQ™Column Base, Quick-Install

The CBSTQ cast-in-place column base is engineered to support wood posts in residential and light commercial construction. With higher download capacities than previous models, the CBSTQ offers a reliable solution for projects requiring a secure connection between wood posts and concrete. It incorporates a 1" standoff to comply with building codes and reduce moisture-related post-end rot. Equipped with S-shaped bearing tabs, the CBSTQ provides increased load capacity and enhanced structural stability. The CBSTQ is designed as a replacement for CBSQ models (except for CBSQ86 and CBSQ88), offering a straightforward upgrade.

• Code-required 1" standoff design that elevates the post above the concrete, protecting it from moisture and resisting rot
• S-shaped bearing tabs that  provide increased strength, allowing for higher downloads
• Strong-Drive® SDS Heavy-Duty Connector screws provide a greater wood net section area than bolts

• See Table

• ZMAX coating; available in HDG

You are currently viewing column bases designed for 4x4, 4x6, and 6x6 applications. For 8x6 and 8x8 applications, see CBSQ™.
